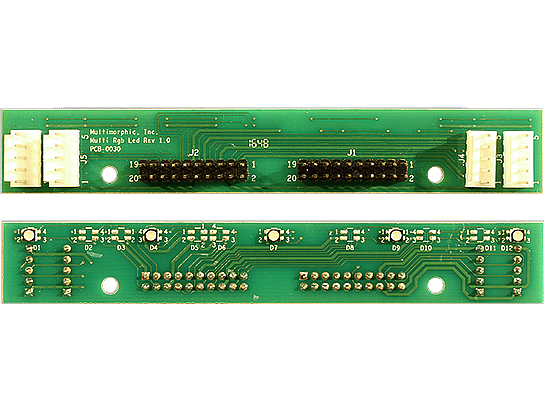

The Multi-RGB LED board is useful for up to 5 adjacent playfield inserts. Each of the 5 RGB LEDs are spaced 1 1/8″ apart and are individually controlled. Additional 5-pin 0.1″ headers provides connections for 3 external LEDs (not provided).
External LED Headers:
1) Power
2) Red Control Line
3) Green Control Line
4) Blue Control Line
5) Ground (unused)
2 20-pin ribbon cable headers provide connectivity directly to a PD-LED board for controlling the LEDs.
